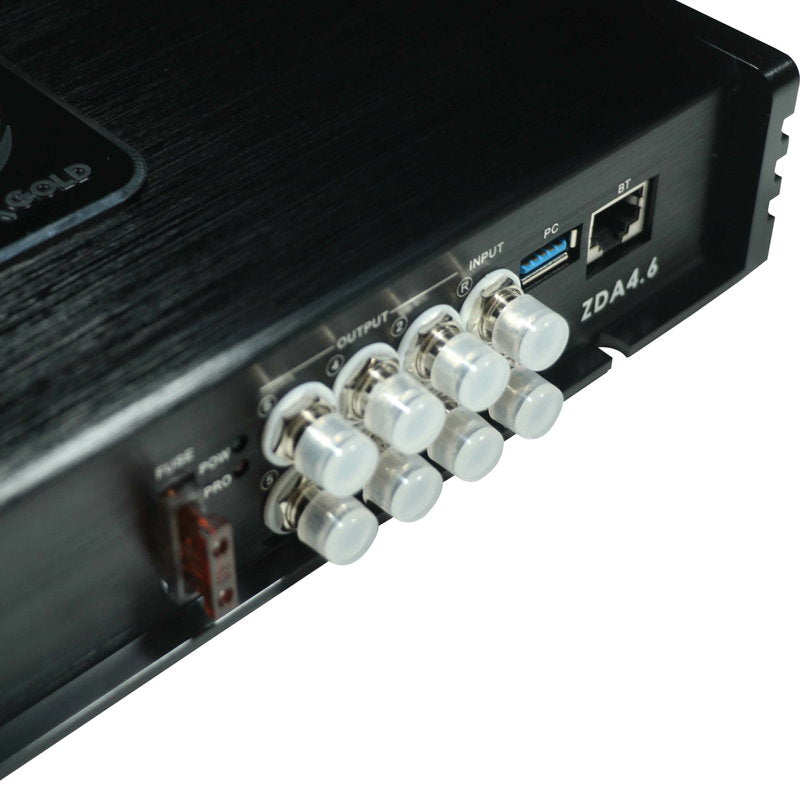

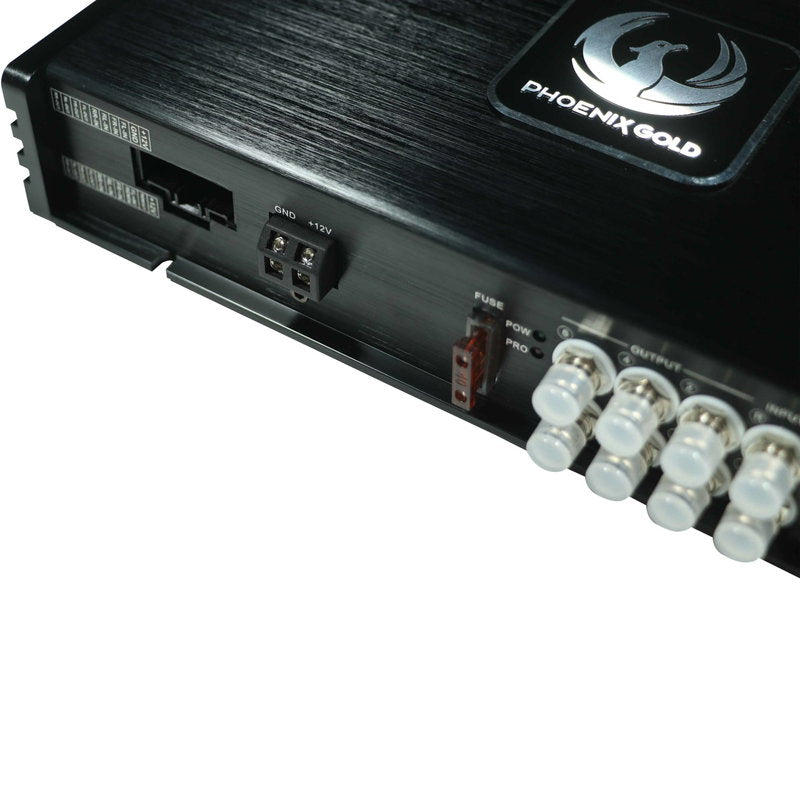

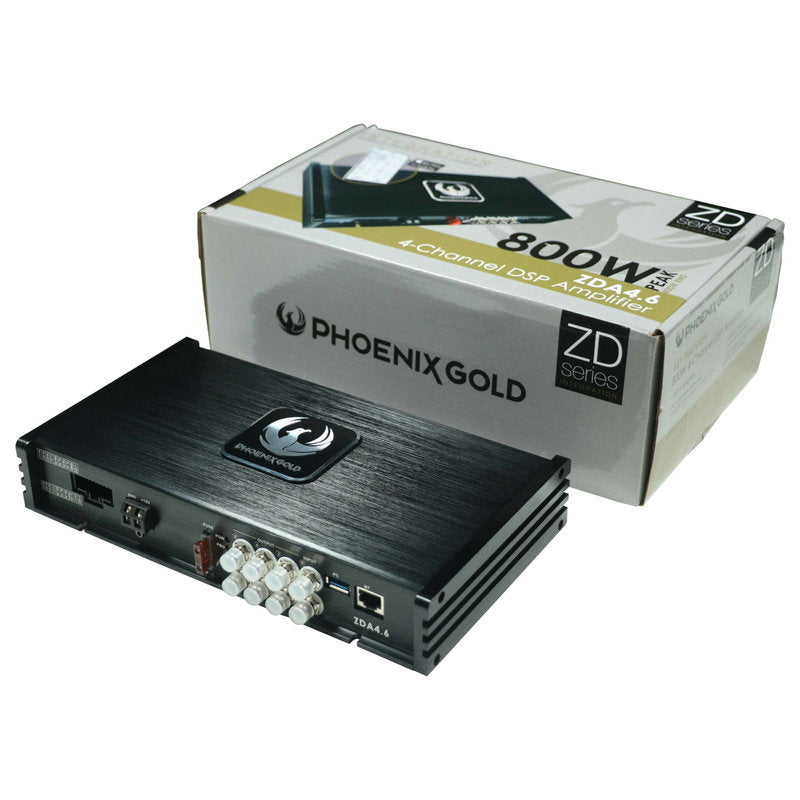

Phoenix Gold ZDA4.6

The ZDA4.6 is an extremely versatile Digital Signal Processor (DSP) with a built-in 4-Channel amplifier. The 6-channel DSP gives you all the features needed to create your perfect audio setup, such as fully adjustable filters, EQ with adjustable Q value and time correction.

This feature packed amp does not end there though, a built-in 4x60W RMS amplifier runs off channels 1-4 on the DSP so you have full control. If you want even more power, you can even use the 6 channel RCA outputs that are also controlled by the DSP.

The ZDA4.6 will run on any source, connect the high-level input and this will be your source, or you can use the RCA input. You can even add a BT module (ZDABT) to the amp and get high-quality streaming and full APP control through your iOS or Android device.

Also available is a remote-control (ZDACT) unit that gives you volume and bass control, along with memory recall. The remote will also give you a USB input in the front which makes it easier to connect to a PC and allows you to do the tweaking in the front of the vehicle.

But it doesnt stop there, with the ISO-T harness that is available as an accessory (ZDAISOT), the ZDA4.6 becomes the perfect integration amp. It will take a high-level input from the car, pass it through the DSP and send it out from the internal amplifier to the speakers in the car, giving you the power and control you need.

If the power isnt enough simply add a second normal amplifier and you have the full functionality of the DSP to make the additional amp work as a SUB amp for even more power to your high power speakers.

Software Downloads
Our ZDA4.6 Amplifier has been designed with software that has been tuned to specific vehicles giving you the ultimate sound no matter what you are connecting to. Click here to find dedicated software files that you can download to configure your amp.

Accessories
ZDABT – Bluetooth interface
ZDACT – Specialist controller
ZDAISOT – ISO T Harness

Download the app: App Store | Android Store | PC Download
APP advanced settings code: 24680

ZDA4.6 Product Specifications:
4x60W RMS @ 4Ohm
6 Channel DSP with RCA output
Full filters HP & LP
10 Band Parametric EQ
Time delay
S/N Ratio 102dB
High – Level input
Plug n play ISO cable (perfect for SOT connections)
Presets available*
Dedicated Android APP
Dedicated iOS APP
APP advanced settings code: 24680
