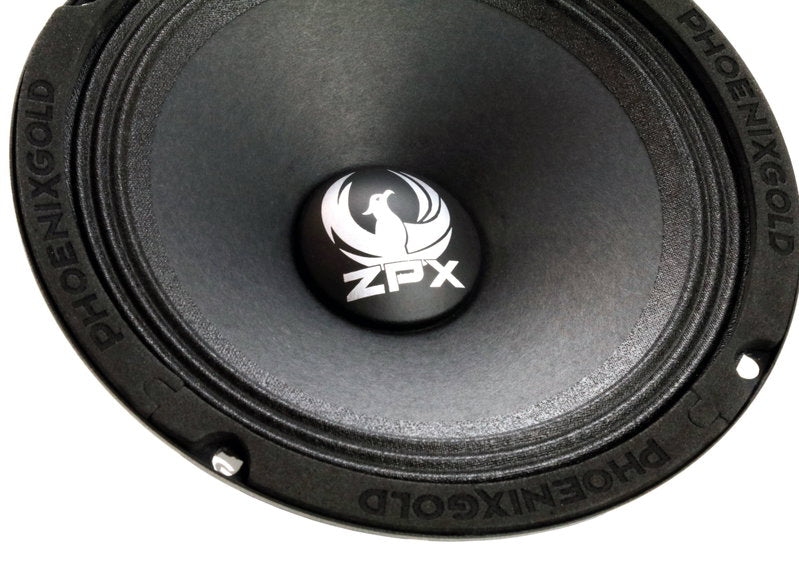

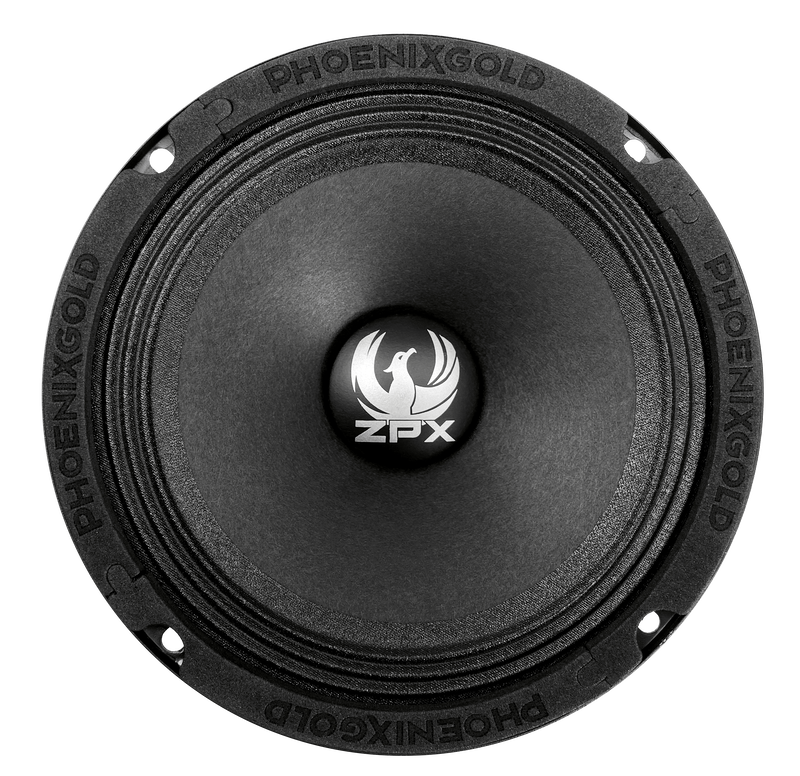

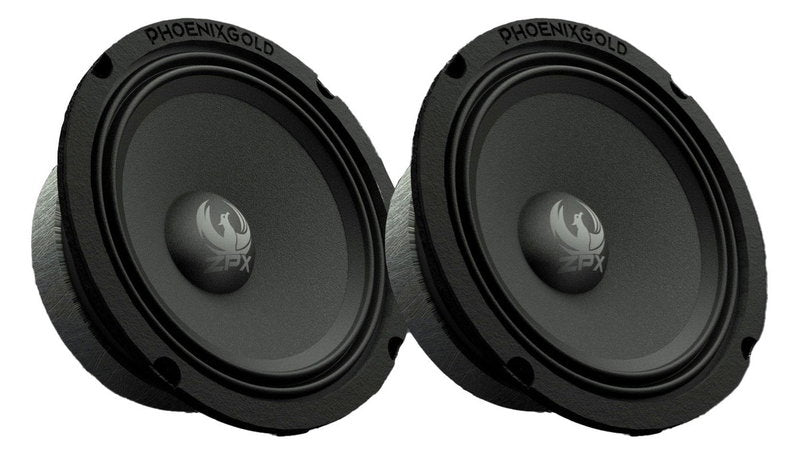

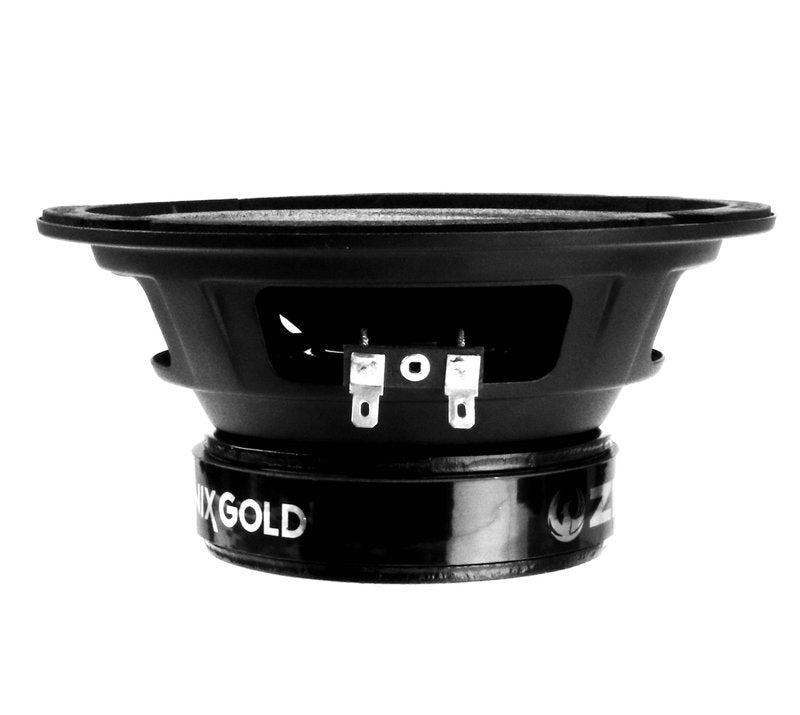

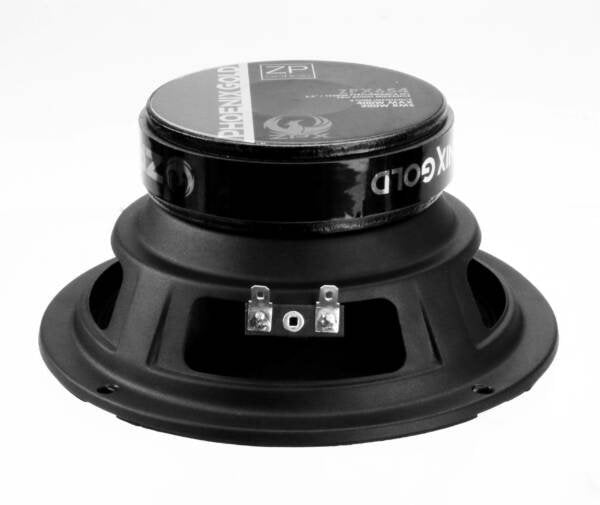

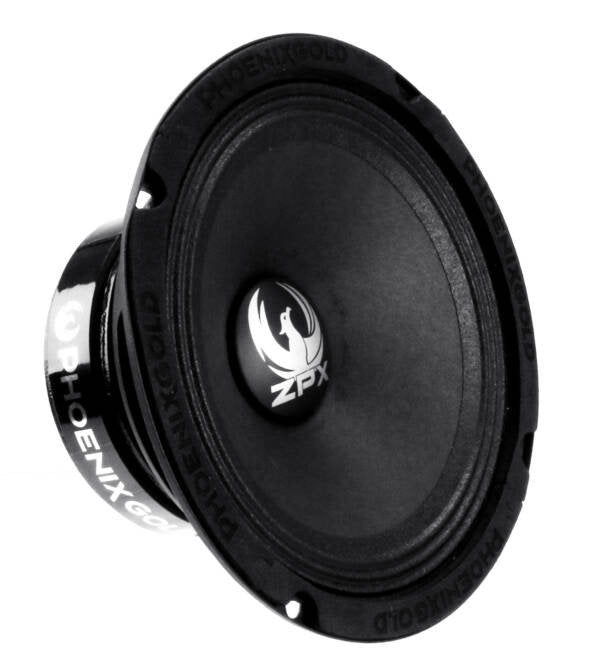

Phoenix gold ZPX654

1.5 OFC High-Temperature Voice Coil: The ZPX drivers feature a 1.5-inch oxygen-free copper (OFC) high-temperature voice coil, ensuring exceptional performance even under demanding conditions.

Triple Roll Cloth Surround: Our triple roll cloth surround facilitates precise and efficient movement, contributing to the speaker’s impressive output and clarity.

20oz Ferrite Motor: A substantial 20oz ferrite motor powers these drivers, delivering the raw force needed for an unparalleled audio experience.

Woven Tinsel Leads: The woven tinsel leads ensure durable and reliable connectivity, ensuring these drivers stand the test of time.

Lightweight Paper Cone: The lightweight yet robust paper cone is carefully engineered for optimal performance, enhancing the speaker’s efficiency.

Our driver technology is centred on efficiency and volume, pushing the boundaries of what’s achievable within the inherent power capabilities of the ZPX range. Every component is meticulously designed and integrated to deliver the most substantial volume possible.
The ZPX series showcases a smart combination of soft components, including the lightweight yet robust paper cone, the triple roll cloth surround, and a precisely specified spider, all working in harmony with the substantial 20oz ferrite motor. This thoughtfully engineered design eliminates wasted energy on heavy dust caps or rubber surrounds, ensuring every ounce of power is translated into direct and pure sound.

The ZPX is a speaker that is not just loud but also incredibly precise and awe-inspiring. It offers a wide bandwidth and a highly efficient response, promising to take your audio experience to new heights. With Phoenix Gold’s ZPX range, you’ll command attention with audio quality that’s nothing short of extraordinary. Embrace the future of sound and make your music a force to be reckoned with.

ZPX654 Specifications:
Speaker Type: PRO Audio Midrange Speaker
Speaker Size: 6.5 (165mm)
Impedance: 4 ?
Frequency Response: 100Hz – 10kHz
Power Handling (RMS): 200W
Power Handling (MAX): 400W
Sensitivity: 91.4dB (1W/1m)
Re: 3.2 Ohm
Fs: 117.8 Hz
Qms: 5.71
Qes: 0.86
Qts: 0.75
Cms: 0.18 mm/N
Vas: 4.8 L
BL: 5.3 N/A
Sd: 136.8 cm2
Mms: 10 gr
Voice Coil Diameter: 1.5 (38mm)
Outer Diameter: 165mm
Mounting Diameter: 141mm
Mounting Depth: 75mm
