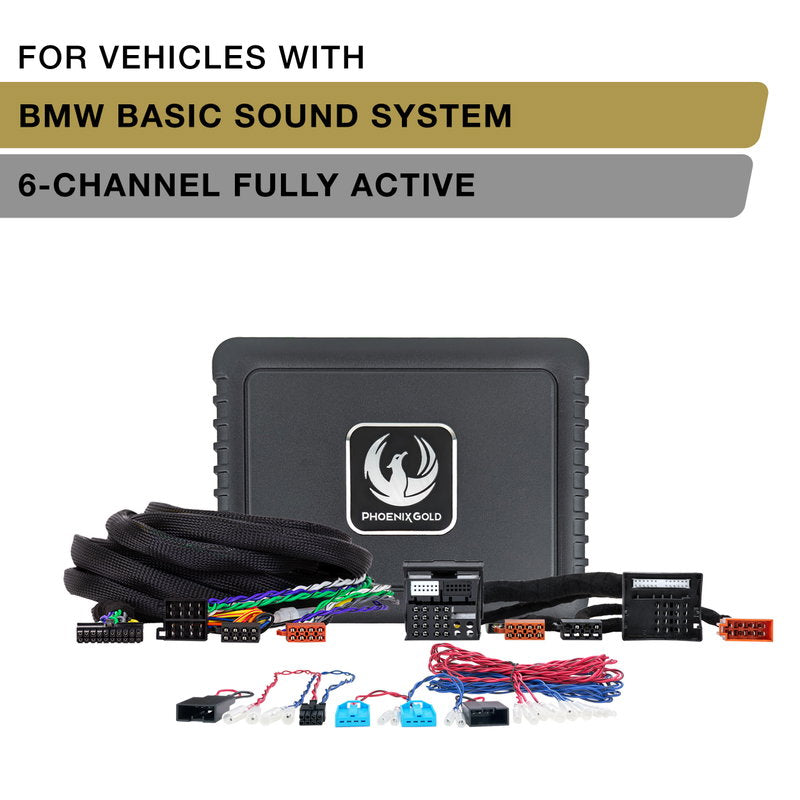

Phoenix Gold ZDAP-BMW2 Full Active DSP Plug & Play Power-Up Kit for BMW with Basic Sound System

Transform your BMW’s audio experience with the Phoenix Gold ZDAP-BMW2 kit, specifically designed for BMW vehicles from 2005 to 2019 equipped with the Basic Sound System. This innovative Plug and Play kit addresses a common issue found in these systems: the front door speakers and underseat woofers are conected together, compromising sound quality and performance.

In the stock configuration, the small 4” door speakers are forced to handle lower bass frequencies, leading to distortion. Simultaneously, the underseat woofers are required to reproduce midrange and treble frequencies they were not designed to handle, further degrading the audio clarity. The result? A muddled and distorted sound profile that falls far short of your vehicle’s potential.

The ZDAP-BMW2 kit resolves this by separating the signal paths of the front door speakers, underseat woofers, and rear speakers, enabling a fully active configuration. This advanced setup allows precise tuning of frequency filters across the entire audio system. Each speaker can be finely calibrated to deliver optimal performance, dramatically reducing distortion, enhancing overall sound clarity, and unlocking the full potential of your vehicle’s sound system. The result is an immersive, balanced, and professional-grade audio experience like never before.

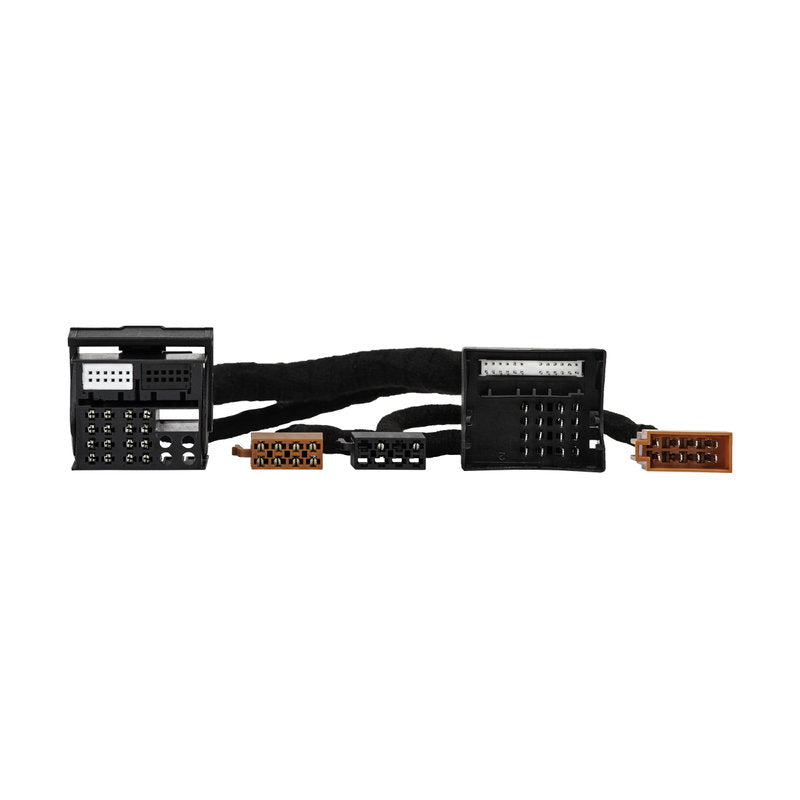

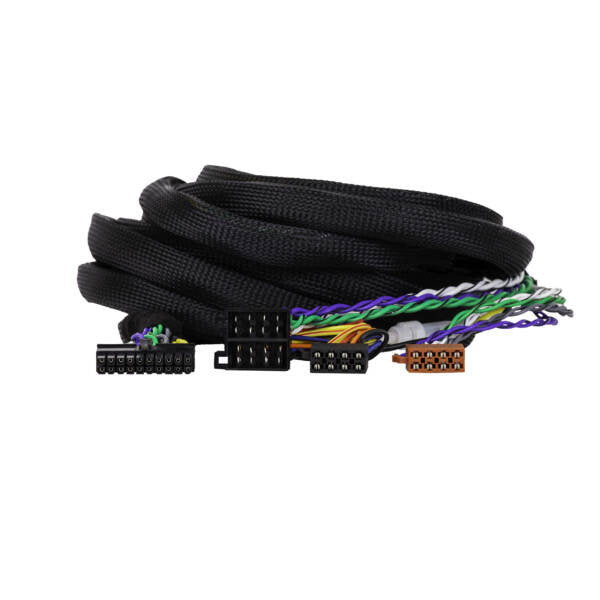

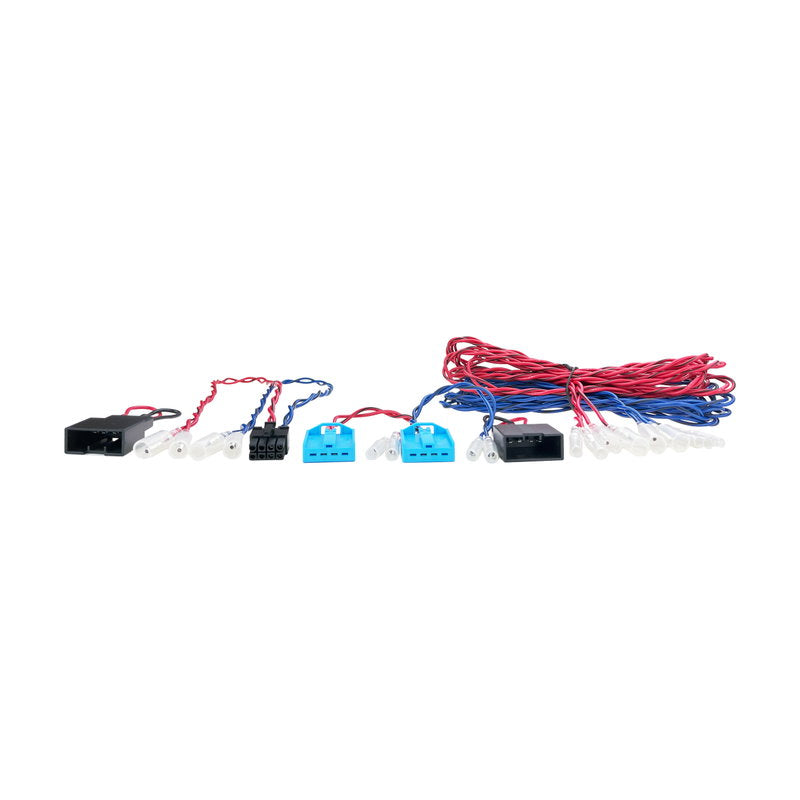

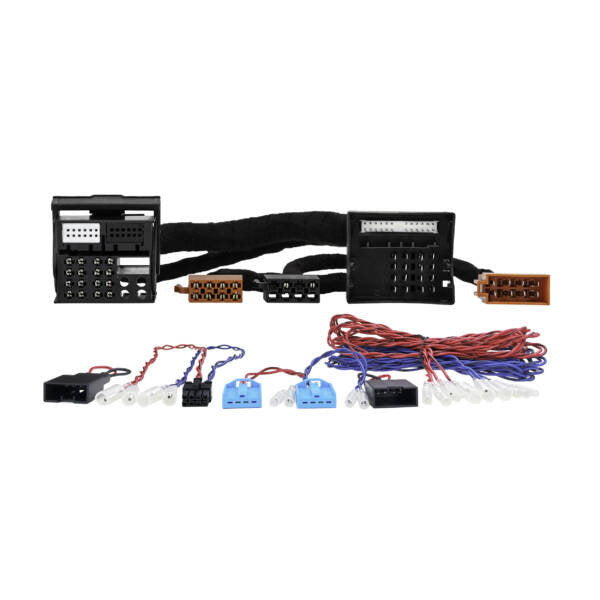

So transform your vehicle’s audio experience with the ZDAP-BMW2 DSP Power Up Kit, engineered to deliver exceptional sound quality. This plug-and-play kit includes a powerful 2x70W and 4x30W RMS Class A/B DSP Amplifier and all the necessary premium-quality harnesses for seamless installation and maximum performance. No vehicle modifications are required, plug it in and enjoy an elevated listening experience.

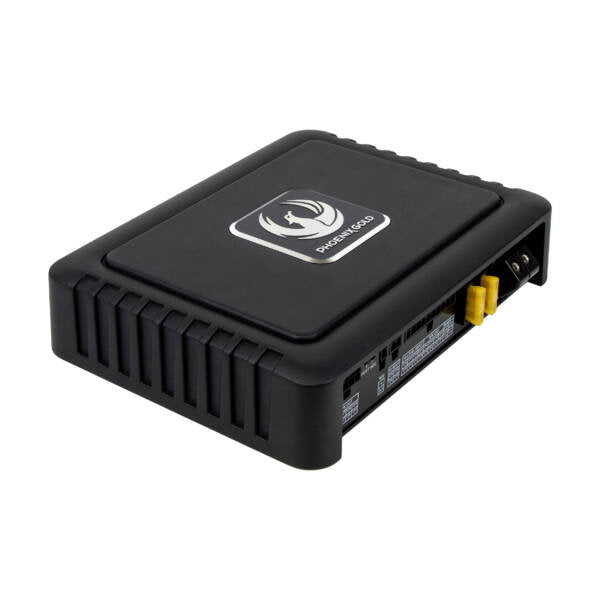

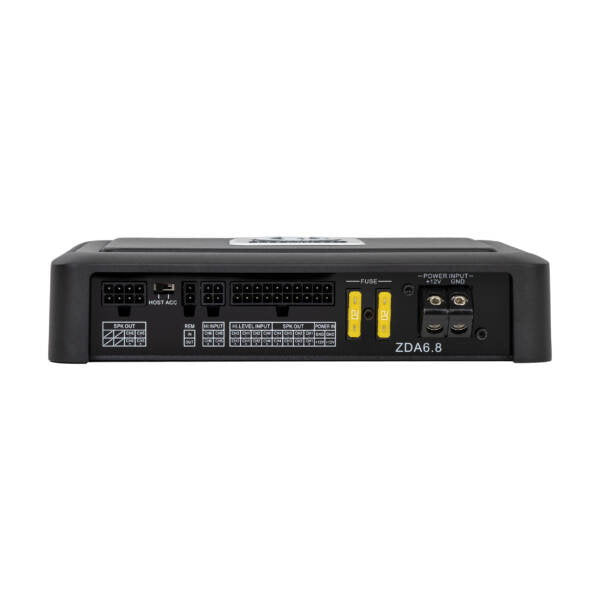

ZDA6.8 – DSP Amplifier

The ZDA6.8 DSP Amplifier redefines in-car sound quality at this price point, outshining the standard factory-installed amplifiers. Unlike the typical Class D technology found in similar products, the ZDA6.8 employs Class A/B technology, delivering a warmer, more natural sound that brings your music to life. Even without DSP adjustments, the sound quality is significantly enhanced. However, the built-in DSP takes it further, allowing you to fine-tune your vehicle’s audio system to suit your preferences, no matter your music taste.

OIS – OEM Impedance Simulation

The ZDA6.8 is equipped with OEM Impedance Simulation (OIS), ensuring compatibility with modern head units and amplifiers. By simulating speaker impedance, it maintains the functionality of your vehicle’s OEM head unit, preventing potential issues with plug-and-play installations.

Input Priority

The Input Priority feature ensures effortless integration with your vehicle’s OEM head unit. You can use low-level inputs or digital sources such as Bluetooth, Optical, or Coaxial, without losing vital system sounds like parking sensors, alerts, and radio signals. For instance, if your vehicle has a high-pass filter that limits bass output, you can bypass this limitation by streaming audio directly to the DSP via Bluetooth while maintaining full OEM functionality.

DSP Outputs

The ZDA6.8 doesn’t stop at upgrading your system—it also enables expansion. With two free DSP-configurable RCA outputs (Channels 7-8), you can connect additional amplifiers, such as a subwoofer amp, and fully optimize them using the DSP software. Delay settings, filters, and equalization options ensure top-tier performance for your additional components.


Detta kit passar till följande bilar:
https://phoenixgold-eu.com/product/zdap-bmw3-dsp-power-up-kit-for-bmw-vehicles-with-hifi-sound-system-676-before-2019/#tab-vehicle-applications
