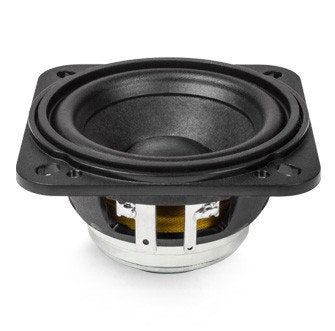

Faital Pro 2FE24 - 8ohm

Nominal Specifications Nominal Diameter 66 mm (2.5 in) Overall Diameter 88/68 mm (3.46/2.68 in) Bolt Circle Diameter 75 mm (2.95 in) Baffle Cutout Diameter 60.5 mm (2.38 in) Depth 32.5 mm (1.28 in) Flange and Gasket Thickness 6 mm (0.24 in) Net Weight 122 g (0.3 lb) Shipping Box (Single Carton Box - 36 units) 285 x 285 x 255 mm (11.2 x 11.2 x 10 in) Shipping Weight (36 units) 5.8 kg (12.8 lb) Technical Parameters Nominal Impedance 8 Ohm Minimum Impedance 6.6 Ohm AES Power Handling (1) 20 W Maximum Power Handling (2) 40 W Sensitivity (1W/1m) 85 dB Frequency Range 170÷20000 Hz Voice Coil Diameter 19 mm (0.75 in) Winding Material Al Former Material Kapton Winding Depth 4.5 mm (0.18 in) Magnetic Gap Depth 3 mm (0.12 in) Flux Density 1.3 T Magnet Neodymium Ring Basket Material Polycarbonate Demodulation No Cone Surround (3) Half Roll NET Air Volume filled by Loudspeaker 0.030 dm^3 (0.001 ft^3) Spider Profile 1x constant height waves Thiele and small parameters Fs 170 Hz Re 6.5 Ohm Qes 1.22 Qms 4.1 Qts 0.94 Vas 0.3 dm^3 (0.01 ft^3) Sd 20.1 cm^2 (3.12 in^2) Xmax (4) 1.75 mm Xdamage (5) 5.3 mm Mms 1.9 g Bl 3.5 N/A Le 0.11 mH Mmd 1.8 g Cms 0.46 mm/N Rms 0.5 kg/s Eta Zero 0.12 % EBP 139 Hz PART NUMBER (P/N) Faston Terminals - 8 Ohm Version 00664365 Notes: (1) 2 Hours Test According to AES 2-1984 Rev. 2003 (2) Maximum power is defined as 3dB greater than nominal power. (3) EPDM (Rubber) (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) (5) Maximum excursion before permanent damage
