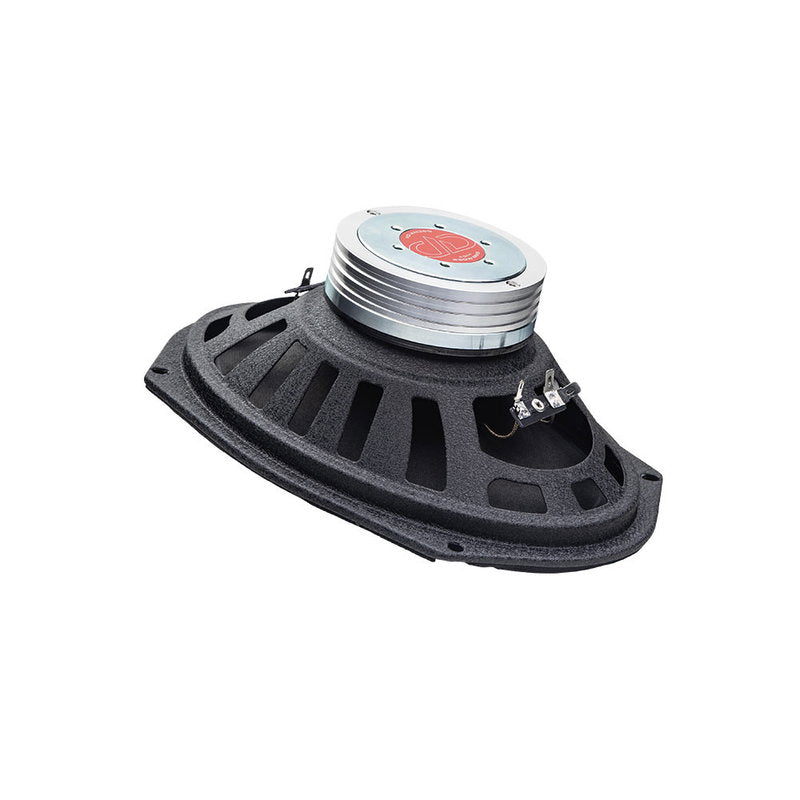

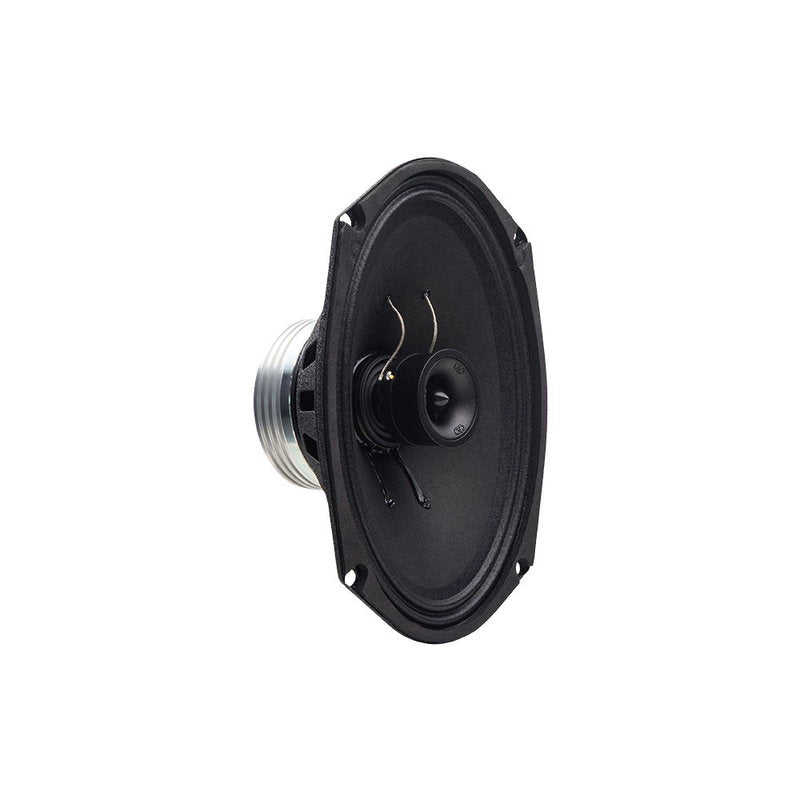

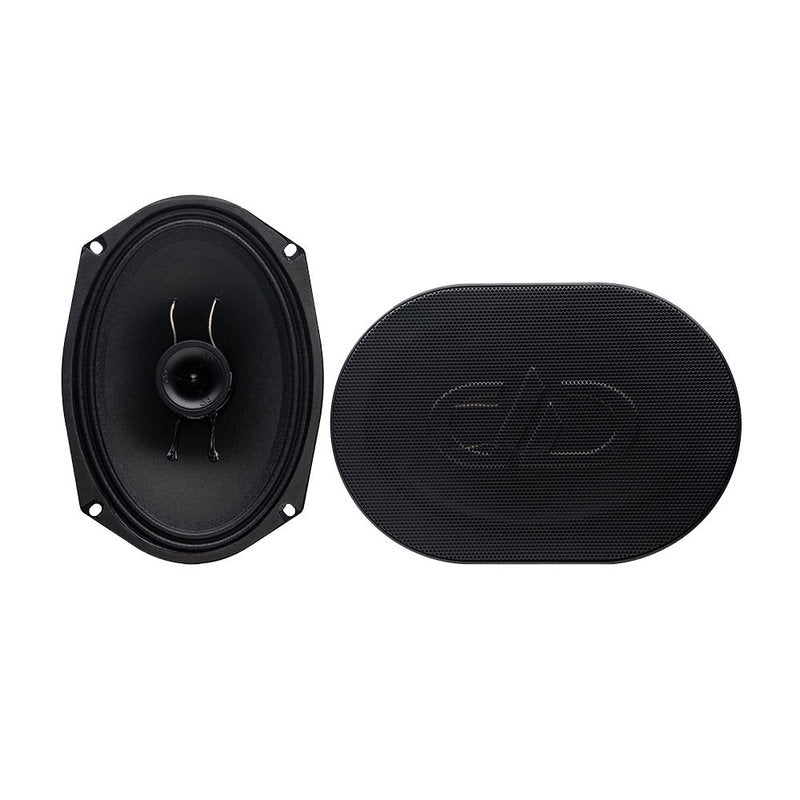

DD Audio VO-XN369-S4

The DD VO-XN drivers continue the Voice Optimized tradition of blending the latest in Hi-Fidelity technology with the qualities of high-end Pro Audio to produce a tonally smooth, low distortion frequency response over a wide bandwidth through an undeniably powerful broadcast, giving listeners near and far a gratifying interaction with loud and clear audio. These midbass drivers can cover the critical frequency area from below 100Hz to 20kHz, making system design easy. They include exclusive adventure ready design features, and offer major power and performance enhancements.

All VO-XN models use long fiber pressed cones made with water-resistant, synthetic resin to achieve both the unyielding rigidity and ultra-light moving mass necessary for a highly sensitive frequency response, while the curvilinear design of the cone profile ensures tonal smoothness into the upper octaves.

• Dual Magnet Neo Motor Design w/ Dual Shorting Rings
• Machined Aluminum Front and Rear Motor Heatsinks
• Kapton Voice Coil Former for Decreased Inductance
• DD Tooled Neo Magnet Compression Tweeter
• Moisture Resistant Polymer Infused Curvilinear Cone
• Rubber Voice Coil Gap Cover
• CCA Voice Coil Wire for Increased Efficiency
• Removable Rear Heatsink for Increased Mountability
• Bi-Ampable
• 4 Ohm and 2 Ohm Voice Coils Available

Speaker Size (In): 6 x 9
Tweeter Size (In): 1
Watts RMS: 250
Watts Peak: 500
Impedance: S4
VCD (In): 1.8
Frequency Response (Hz): 65 - 20k
Fs (Hz): 65
Qms: 10.644
Qes: 0.764
Qts: 0.713
Vas (Liters): 14.368
dBSPL: 96
Tweeter dBSPL: 104
Mounting Diameter (In): 8.7 x 5.9
Mounting Diameter (MM): 220 x 150
Mounting Depth (In): 3
Mounting Depth (MM): 77
